Evolution of Hull Forms: A Historical and Technological Perspective

The Birth of Hydrodynamics

In ancient times, the earliest boats were basic in their shapes determined by practical needs and the materials at hand. As maritime technology progressed to built more advanced wooden vessels, these early designs were still guided by experience and intuition rather than scientific understanding.

Although Leonardo da Vinci was among the first to observe and sketch the behaviour of water, including the formation of eddies and turbulence, he lacked the mathematical framework needed to fully explain these fluid dynamics. The formal study of hydrodynamics—the science of water movement and the forces acting on it—began to emerge in the 17th century with contributions from pioneers like Isaac Newton and Christiaan Huygens, who laid the groundwork for fluid mechanics. In the 18th and 19th centuries, scientists such as Daniel Bernoulli and Leonhard Euler made critical advancements, developing equations that described fluid flow and pressure. These foundational studies influenced naval architecture, inspiring engineers to experiment with hull designs aimed at reducing drag and enhancing speed.

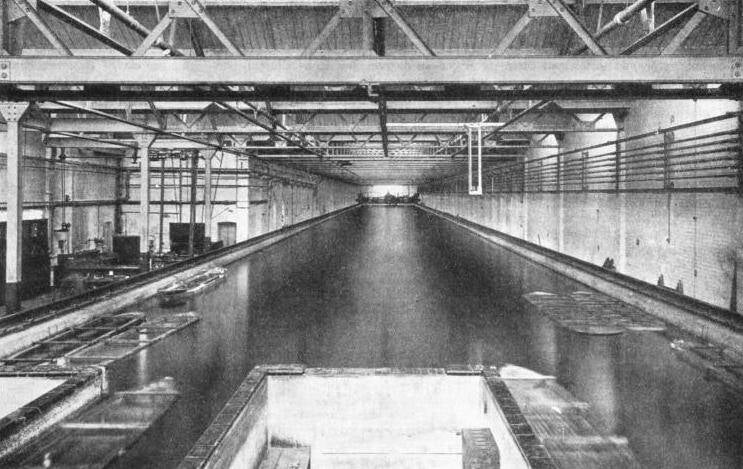

A major breakthrough in hull design came in the mid-19th century from British engineer William Froude. He introduced the concept of model testing, using scaled-down replicas to predict the performance of full-sized ships. This innovation enabled designers to analyse the impact of hull shape on drag and resistance more effectively, paving the way for a more scientific approach to ship design and the development of faster, more efficient vessels.

The Evolution of Boatbuilding Techniques

The earliest known boats date back to the prehistoric era, when humans first discovered the buoyancy of logs and began crafting simple vessels from hollowed-out trees. These dugout canoes, created using fire and stone tools, represent humanity’s initial foray into boatbuilding. Their design was basic but effective: a rounded, log-like shape that provided stability and buoyancy for river crossings and fishing.

As civilizations developed, so did the sophistication of boatbuilding techniques. Ancient Egyptians, for example, began constructing boats using bundles of reeds lashed together, forming lightweight but buoyant vessels suited to the calm waters of the Nile. They soon advanced to wooden plank construction, using mortise-and-tenon joints to secure the planks, a technique that allowed for the creation of larger, more durable ships capable of carrying heavy cargo.

In the Mediterranean, the Greeks and Phoenicians pushed the boundaries of wooden shipbuilding. They developed a "shell-first" construction method, where the outer hull was built first, followed by the internal framework. This approach allowed for more streamlined hull shapes, improving speed and manoeuvrability. Ones who mastered further this technique were the Vikings, who between 8th and 11th century revolutionised boatbuilding with their iconic longships built in "clinker" method, where planks overlapped each other along the edges. This technique made the hull flexible and resilient, ideal for navigating both rough ocean waves and shallow rivers. The superior design of the longship - also known as Drakkar - enabled the Vikings to explore far beyond their homeland, reaching as far as North America (Vinland) centuries before Columbus. The Viking age was a testament to the power of thoughtful design and skilled craftsmanship in boatbuilding.

The Age of Sail

Spanning the 14th to 17th centuries, the age of sail marked a golden era in wooden shipbuilding and marked a turning point in human history. Driven by advances in boatbuilding that allowed for long-distance sea travel, European explorers set out across uncharted waters, seeking new trade routes and territories. European shipbuilders honed their craft, developing advanced techniques to construct larger, faster, and more seaworthy vessels. Ship construction shifted to a "frame-first" method, where a skeleton of wooden ribs (frames) was built first, followed by the attachment of the outer planks. This approach allowed for greater precision in shaping the hull, leading to more efficient designs. The Caravel for example, developed by the Portuguese, was a small, highly manoeuvrable ship featuring a mix of square and lateen sails. Its unique design allowed it to sail effectively into the wind, making it perfect for exploration.

During this period, the stern-mounted rudder became standard, vastly improving the manoeuvrability of ships. This innovation, combined with further advances in hull design, enabled the construction of larger, more robust vessels like the Carrack and the Galleon, which could undertake transoceanic voyages. Another important innovation was the introduction of double-planked hulls, which provided extra strength and improved water tightness. Shipbuilders also began using caulking—stuffing fibers like oakum into the seams between planks and sealing them with pitch—to prevent leaks.

The introduction of copper sheathing in the late 18th century was another significant advancement. Copper plates were nailed to the bottom of wooden ships to protect against wood-boring organisms and reduce drag from marine growth, enhancing both the speed and longevity of vessels. The ships of this period were marvels of engineering. Like Schooners and Clippers who featured multiple decks, complex rigging systems, and intricate carvings. The craftsmanship involved in building these vessels was immense, requiring skilled laborers and specialized tools. Shipyards became bustling centres of innovation and industry, with shipwrights developing new tools tailored to the needs of large-scale wooden ship construction.

The Advent of Iron and Steel

The 19th century brought about a revolutionary change in shipbuilding with the introduction of iron and later steel as primary construction materials. The shift from wood to metal was driven by the Industrial Revolution, which provided new manufacturing techniques and a greater understanding of material properties.

Iron offered significant advantages over wood: it was stronger, more durable, and less susceptible to rot and marine damage. The launch of the SS Great Britain in 1843, designed by Isambard Kingdom Brunel, marked a turning point in shipbuilding. The ship’s iron hull allowed for a larger and more robust design, capable of carrying greater cargo and passengers over long distances.

By the late 19th century, steel had replaced iron as the preferred material for shipbuilding. Steel’s superior strength-to-weight ratio enabled shipbuilders to design larger, faster, and more efficient vessels. The development of riveted and later welded steel construction techniques allowed for seamless, watertight joints, drastically improving the structural integrity of ships.

The Fiberglass Revolution

Fiberglass, introduced in the mid-20th century, transformed the recreational boating industry. It offered several advantages over traditional materials like wood and steel: it was lightweight, strong, corrosion-resistant, and could be easily moulded into complex shapes. The use of fiberglass allowed designers to experiment with innovative hull forms, leading to the development of faster, more efficient pleasure craft.

Further introduction of advanced composites like carbon fiber has taken boatbuilding to new heights, particularly in high-performance and racing yachts. Carbon fiber, known for its exceptional strength-to-weight ratio, allows for the construction of ultra-light yet incredibly strong hulls.

These advanced materials, combined with modern construction techniques, have enabled the creation of cutting-edge vessels capable of achieving unprecedented speeds and performance.

The Rise of Steam power and Internal Combustion Engines

The transition from sail to steam power in the 19th century was another critical milestone in the evolution of boatbuilding, fundamentally altering hull forms and reshaping the design of vessels. Steam power freed ships from reliance on wind, opening new possibilities for vessel speed, endurance, and efficiency but their boilers were large, heavy pieces of equipment, requiring ships to be built with greater capacity to accommodate them. Traditional sailboat hulls, often narrow to reduce drag and improve manoeuvrability, were not suited to support this new machinery. Shipbuilders began constructing deeper and wider hulls to increase stability and buoyancy, allowing vessels to support the heavy weight of steam engines and maintain balance.

One of the earliest types of steam-powered vessels was the paddle steamer, which used large paddle wheels on the sides (or stern) of the hull for propulsion. The placement of paddle wheels required additional structural reinforcement on either side of the hull, which affected hull shape and stability. Paddlewheel steamers typically had flat-bottomed hulls to support these large, side-mounted wheels, making them ideal for rivers and shallow coastal waters but less suited for open seas.

The invention of the screw propeller in the mid-19th century brought a significant shift in hull design. Propellers could be mounted at the stern, providing more direct propulsion and allowing for a deeper, more efficient hull shape. This innovation eliminated the need for side-mounted paddle wheels, freeing designers to experiment with fuller, more hydrodynamic hull shapes that could withstand the demands of ocean travel.

The development of the internal combustion engine in the early 20th century marked yet another transformative shift in hull design. Diesel engines were smaller, lighter, and more efficient than steam engines, allowing for greater flexibility in hull form and ship design. Less space required smaller, lighter fuel tanks, freeing up valuable cargo and passenger areas. This change allowed for slimmer hulls that retained stability without the need for the extra bulk required for steam machinery. Hulls could be made narrower and lighter, enabling ships to achieve higher speeds with less resistance. With diesel engines, it became possible to build faster, more agile vessels, including military ships, cargo carriers, and ocean liners. These specialized vessels could feature hull forms optimized for specific purposes, whether high-speed combat or efficient cargo transport.

Introduction of Modern Design Tools

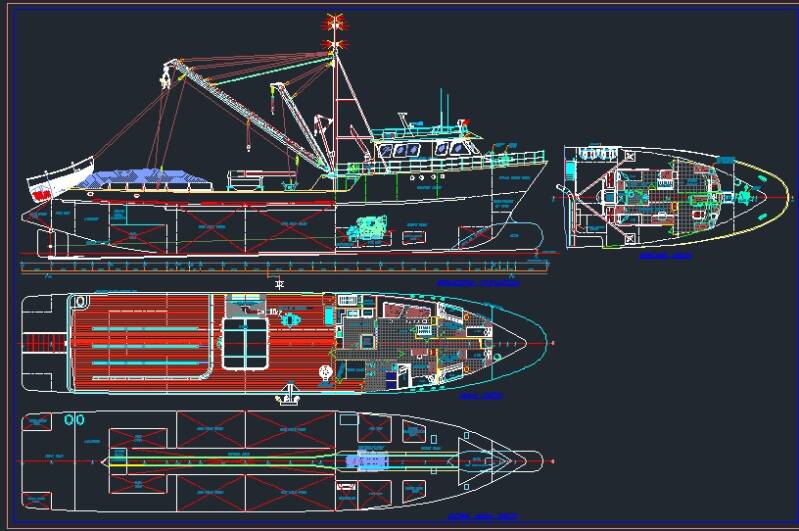

The adoption of CAD/CAM and advanced engineering tools has brought a fundamental transformation to naval architecture in general, placing a stronger emphasis on the design and optimization of hull forms. These technologies have not only accelerated the design process but have also allowed for the creation of hull shapes that are lighter, faster, and structurally superior. By leveraging modern computational tools, designers can now push the limits of hydrodynamic performance and structural integrity, resulting in innovative hull forms that were once unimaginable.

The integration of CAD, CAM, FEA, and CFD has created a streamlined, data-driven approach to hull form design, enabling a more holistic optimization process. CAD models serve as the foundation for both structural analysis (FEA) and hydrodynamic simulations (CFD), allowing for seamless data exchange and iterative refinement. CAM processes then translate these optimized designs into precise, automated manufacturing instructions, ensuring that every detail of the innovative hull form is faithfully reproduced during construction.

This integrated workflow has led to the development of advanced hull forms that balance hydrodynamic efficiency, structural integrity, and manufacturing feasibility. The result is a new generation of vessels with hull shapes that minimize drag, maximize speed, and offer greater durability and safety, whether in high-performance racing yachts or large commercial ships.

R.M.
